CENTER VENTILATOR GRILLE REMOVAL/INSTALLATION


id091700454800

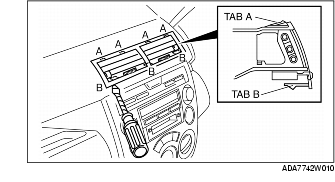

1. Using a tape-wrapped flathead screwdriver, disengage tabs A, B, then remove the center ventilator grille.

2. Install in the reverse order of removal.
