INNER GARNISH REMOVAL/INSTALLATION


id091700460500

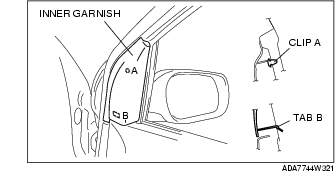

1. Pull the inner garnish outward, then disengage clip A.

2. Pull out tab B from the body, then remove the inner garnish.

3. Install in the reverse order of removal.
