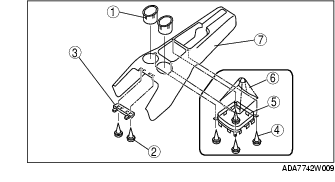

1. Disassemble in the order indicated in the table.
|
1
|
Cup holder
|
|
2
|
Screw (MTX vehicles)
|
|
3
|
Console bracket (MTX vehicles)
|
|
4
|
Screw (MTX vehicles)
|
|
5
|
Set plate (MTX vehicles)
|
|
6
|
Boot (MTX vehicles)
|
|
7
|
Console
|
2. Assemble in the reverse order of disassembly.
