GLOVE COMPARTMENT NO.1 REMOVAL/INSTALLATION


id091700806700

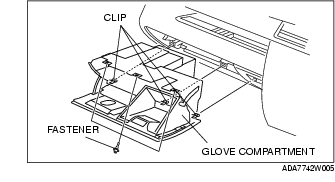

1. Remove the fasteners.

2. Pull the glove compartment outward, disengage the clips, then remove glove compartment No.1.

3. Install in the reverse order of removal.
