BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION


id091800463800

1. Disconnect the negative battery cable.

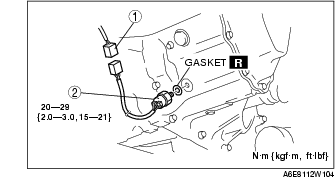

2. Remove in the order indicated in the table.

1
Connector
2
Back-up light switch

3. Install in the reverse order of removal.
