REAR COMBINATION LIGHT REMOVAL/INSTALLATION


id091800465500

1. Disconnect the negative battery cable.

2. Remove the trunk side trim.

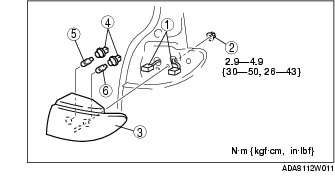

3. Remove in the order indicated in the table.

1
Connector
2
Nut
3
Rear combination light
4
Socket
5
Rear turn light bulb
6
Brake light/taillight bulb

4. Install in the reverse order of removal.
