LICENSE PLATE LIGHT REMOVAL/INSTALLATION


id091800465800

1. Disconnect the negative battery cable.

2. Remove the liftgate trim.

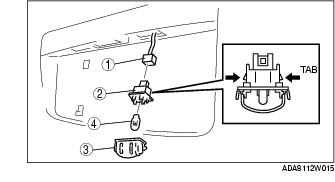

3. Remove in the order indicated in the table.

1
Connector
2
License plate light
3
Lens
4
License plate light bulb

4. Install in the reverse order of removal.
