FRONT FOG LIGHT REMOVAL/INSTALLATION [VEHICLES WITH STANDARD TYPE BUMPER]

id091800468507

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

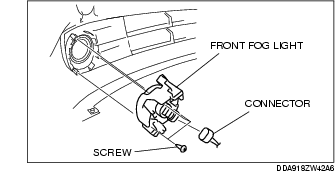

3. Disconnect the connector.

4. Remove the screws, then remove the front fog light.

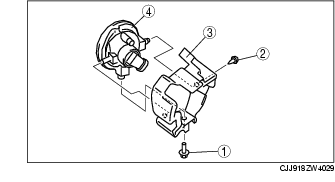

5. Remove in the order indicated in the table.

1
Bolt
2
Screw
3
Front fog light bracket
4
Front fog light

6. Install in the reverse order of removal.

7. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
