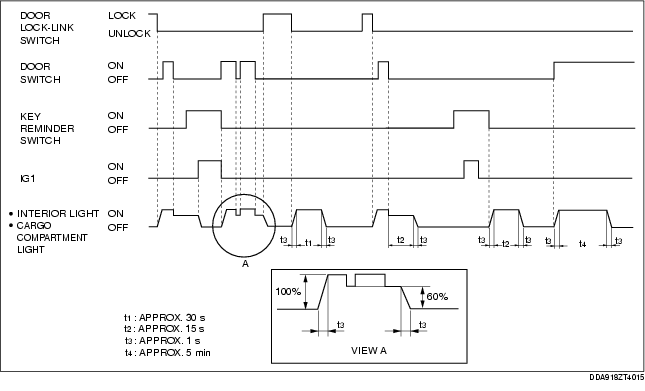

1
|
• Ignition switch is in LOCK or ACC position
(IG1 OFF)
• When all doors are closed.
(All door switches off)
|
Open a door (Any door switch on)
|
Approx. 30 min
|
100%
|
• Close all doors.
(All door switches off)
• After set illumination passes*
|
|
2
|
• Key is removed from the key cylinder
(Key reminder switch is off)
• When all doors are closed.
(All door switches off)
• When driver-side door is locked
(Door lock link switch is at LOCK position)
|
Unlock driver-side door
(Door lock-link switch unlocked)
|
Approx. 30 s
|
100%
|
• Turn ignition switch to ON position
(IG1 ON)
• Open a door
(Any door switch on)
• Lock driver-side door
(Door lock-link switch at LOCK position)
• After set illumination time passes*
|
|
3
|
• Key is inserted into key cylinder
(Key reminder switch is on)
• When all doors are closed.
(All door switches off)
|
Remove key from key cylinder
(Key reminder switch is off)
|
Approx. 15 s
|
100%
|
• Turn ignition switch to ON position.
(IG1 ON)
• Open a door
(Any door switch on)
• Lock driver-side door
(Door lock-link switch at LOCK position)
• After set illumination time passes*
|
|
4
|
• Ignition switch at LOCK or ACC position
(IG1 OFF)
• Any door is open
(Any door switch on)
• Driver-side door is unlocked
(Door lock-link switch is unlocked)
|
Close all doors
(All door switches off)
|
Approx. 15 s
|
60%
|
• Turn ignition switch to ON position.
(IG1 ON)
• Open a door
(Any door switch on)
• Lock driver-side door
(Door lock-link switch at LOCK position)
• After set illumination time passes*
|
