FLASHER CONTROL MODULE REMOVAL/INSTALLATION


id091800850900

1. Disconnect the negative battery cable.

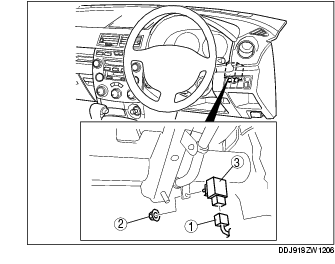

2. Remove in the order indicated in the table.

1
Connector
2
Nut
3
Flasher control module

3. Install in the reverse order of removal.
