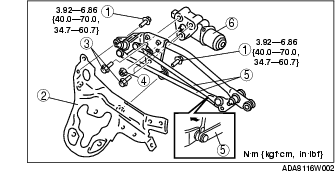

1. Disassemble in the order indicated in the table.
|
1
|
Bolt A
|
|
2
|
Windshield wiper motor bracket
|
|
3
|
Bolt B
|
|
4
|
Nut
|
|
5
|
Windshield wiper link
|
|
6
|
Windshield wiper motor
|
2. Assemble in the reverse order of disassembly.
