AUDIO UNIT DISASSEMBLY/ASSEMBLY

id092000800800

1. Remove the audio unit. (See CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY.)

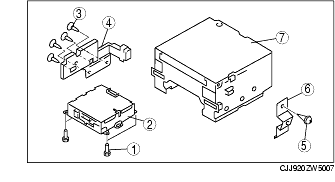

2. Disassemble in the order indicated in the table.

1
Screw
2
Lower module (Without HDD)
3
Screw
4
Wiring harness
5
Screw
6
Bracket
7
Base unit

3. Assemble in the reverse order of disassembly.
