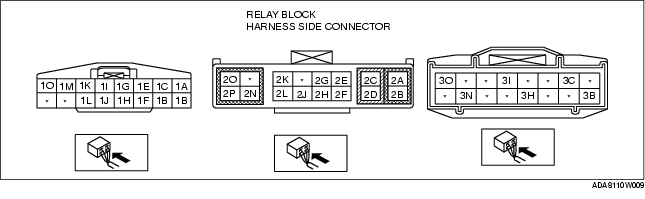

Ter-minal
|
Signal
|
Connected to
|
Test condition
|
Voltage (V)/Continuity
|
Inspection item (s)
|
|
1A
|
GND
|
Body GND
|
Under any condition: Inspect for continuity to ground.
|
Continuity
|
• GND
|
|
1B
|
ATX: TR switch input
|
TR switch
|
Shift the selector lever to R position.
|
B+
|
• TR switch
• Related wiring harness
|
|
Except above condition
|
1.0 or less
|
|
MTX: Back-up light switch input
|
Back-up light switch
|
Shift the shift lever to R position.
|
B+
|
• Back-up light switch
• Related wiring harness
|
|
Except above condition
|
1.0 or less
|
|
1C
|
Auto stop switch input
|
Windshield wiper motor (Auto stop switch)
|
Shift the lever so that the windshield wiper and washer switch is at the OFF position while the windshield wiper is operating.
|
1.0 or less
|
• Windshield wiper motor
• Related wiring harness
|
|
Except above condition
|
B+
|
|
1D
|
Parking light bulb output
|
Parking light bulb
|
Turn the light switch to the TNS or ON position.
|
B+
|
• Parking light bulb
• Related wiring harness
|
|
Turn the light switch to the OFF position.
|
1.0 or less
|
|
1E
|
Rear washer motor output
|
Washer motor
|
Turn the rear wiper and washer switch to the washer position.
|
B+
|
• Washer motor
• Related wiring harness
|
|
Except above condition
|
1.0 or less
|
|
1F
|
Front turn light (RH) output
|
• Front turn light (RH)
• Front side turn light (RH)
|
Turn switch (RH) is on.
|
Alternates between 1.0 or less and B+
|
• Front turn light (RH)
• Front side turn light (RH)
• Related wiring harness
|
|
Hazard warning switch is on.
|
|
Except above condition
|
1.0 or less
|
|
1G
|
Windshield washer motor output
|
Washer motor
|
Pull the lever so that the windshield wiper and washer switch is at the washer position.
|
B+
|
• Washer motor
• Related wiring harness
|
|
Except above condition
|
1.0 or less
|
|
1H
|
Front turn light bulb (LH) output
|
• Front turn light bulb (LH)
• Front side turn light bulb (LH)
|
Turn switch (LH) is on.
|
Alternates between 1.0 or less and B+
|
• Front turn light bulb (LH)
• Front side turn light bulb (LH)
• Related wiring harness
|
|
Hazard warning switch is on.
|
|
Except above condition
|
1.0 or less
|
|
1I
|
Windshield wiper motor operation output
|
Front wiper motor
(LO)
|
Turn the windshield wiper and washer switch to the LO position.
|
Windshield wiper motor operating
|
B+
|
• Windshield wiper motor
• Related wiring harness
|
|
Windshield wiper motor not operating
|
1.0 or less
|
|
1J
|
Horn output
|
Horn
|
Push the horn switch on.
|
B+
|
• Horn
• Related wiring harness
|
|
Except above condition
|
1.0 or less
|
|
1K
|
Windshield wiper motor (high) operation output
|
Windshield wiper motor (high)
|
Turn the windshield wiper and washer switch to the HI position.
|
Windshield wiper motor operating
|
B+
|
• Windshield wiper motor
• Related wiring harness
|
|
Windshield wiper motor not operating
|
1.0 or less
|
|
1L
|
Power supply
|
STOP 15 A fuse
|
Under any condition
|
B+
|
• STOP 15 A fuse
• Related wiring harness
|
|
1M
|
Auto stop switch output
|
Windshield wiper motor (auto stop switch)
|
Shift the lever so that the windshield wiper and washer switch is at the OFF position while the windshield wiper is operating.
|
B+
|
• Windshield wiper motor
• Related wiring harness
|
|
Except above condition
|
1.0 or less
|
|
1O
|
Power supply
|
BTN 25 A fuse
|
Under any condition
|
B+
|
• BTN 25 A fuse
• Related wiring harness
|
|
2A
|
IG 1
|
WIPER 20 A fuse
|
Turn the ignition switch to the ON position.
|
B+
|
• WIPER 20 A fuse
• Related wiring harness
|
|
Turn the ignition switch to the ACC or LOCK position.
|
1.0 or less
|
|
2B
|
Auto stop operation check
|
Windshield wiper and washer switch
|
Windshield wiper is not operating: Inspect for continuity to ground.
|
Continuity
|
• Windshield wiper motor
• Related wiring harness
|
|
2C
|
IG 2
|
R.WIP 10 A fuse
|
Turn the ignition switch to the ON position.
|
B+
|
• R.WIP 10 A fuse
• Related wiring harness
|
|
Turn the ignition switch to the ACC or LOCK position.
|
1.0 or less
|
|
2D
|
Illumination light bulb output
|
Illumination light bulb
|
Turn the light switch to the TNS or ON position.
|
B+
|
• ILLUMI 7.5 A fuse
• Illumination light bulb
• Related wiring harness
|
|
Turn the light switch to the OFF position.
|
1.0 or less
|
|
2E
|
Rear washer switch output
|
Rear wiper and washer switch
|
Turn the rear wiper and washer switch to the washer position.
|
1.0 or less
|
• Rear wiper and washer switch
• Related wiring harness
|
|
Except above condition
|
B+
|
|
2F
|
Windshield wiper LO operation output
|
Windshield wiper and washer switch
|
Turn the windshield wiper and washer switch to the LO position.
|
Windshield wiper motor operating
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harness
|
|
Windshield wiper motor not operating
|
B+
|
|
2G
|
Windshield washer operation output
|
Windshield wiper and washer switch
|
Turn the windshield wiper and washer switch to the washer position.
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harness
|
|
Except above condition
|
B+
|
|
2H
|
Windshield wiper HI operation input
|
Windshield wiper and washer switch
|
Turn the windshield wiper and washer switch to HI position.
|
Windshield wiper motor operating
|
1.0 or less
|
• Windshield wiper and washer switch
• Related wiring harness
|
|
Windshield wiper motor not operating
|
B+
|
|
2J
|
Light switch (TNS) output
|
Light switch
|
Turn the light switch to the TNS or ON position.
|
1.0 or less
|
• Light switch
• Related wiring harness
|
|
Turn the light switch to the OFF position.
|
B+
|
|
2K
|
Rear wiper operation output
|
Rear wiper and washer switch
|
Turn the rear wiper and washer switch to the ON position
|
Rear wiper motor operating
|
1.0 or less
|
• Rear wiper and washer switch
• Related wiring harness
|
|
Rear wiper motor not operating
|
B+
|
|
2L
|
Horn switch output
|
Horn switch
|
Push the horn switch on.
|
1.0 or less
|
• Horn switch
• Related wiring harness
|
|
Except above condition
|
B+
|
|
2N
|
TNS input
|
TAIL 7.5 A fuse
|
Turn the light switch to the TNS or ON position.
|
B+
|
• TAIL 7.5 A fuse
• Related wiring harness
|
|
Turn the light switch to the OFF position.
|
1.0 or less
|
|
2O
|
Flasher unit (RH) input
|
Flasher unit
|
Turn switch (RH) is on.
|
Alternates between 1.0 or less and B+
|
• Flasher unit
• Related wiring harness
|
|
Hazard warning switch is on.
|
|
Except above condition
|
1.0 or less
|
|
2P
|
Flasher unit (LH) input
|
Flasher unit
|
Turn switch (LH) is on.
|
Alternates between 1.0 or less and B+
|
• Flasher unit
• Related wiring harness
|
|
Hazard warning switch is on.
|
|
Except above condition
|
1.0 or less
|
|
3B
|
Rear turn light bulb (LH) output
|
Rear turn light bulb (LH)
|
Turn switch (LH) is on.
|
Alternates between 1.0 or less and B+
|
• Rear turn light bulb (LH)
• Related wiring harness
|
|
Hazard warning switch is on.
|
|
Except above condition
|
1.0 or less
|
|
3C
|
Rear turn light bulb (RH) output
|
Rear turn light bulb (RH)
|
Turn switch (RH) is on.
|
Alternates between 1.0 or less and B+
|
• Rear turn light bulb (RH)
• Related wiring harness
|
|
Hazard warning switch is on.
|
|
Except above condition
|
1.0 or less
|
|
3H
|
Stop light switch output
|
Stop light switch
|
Under any condition
|
B+
|
• Stop light switch
• Related wiring harness
|
|
3I
|
Rear wiper motor input
|
Rear wiper motor
|
Turn the rear wiper and washer switch to the ON position
|
Rear wiper motor operating
|
1.0 or less
|
• Rear wiper motor
• Related wiring harness
|
|
Rear wiper motor not operating
|
B+
|
|
3N
|
Taillight bulb and license plate light bulb output
|
• Taillight bulb
• License plate light bulb
|
Turn the light switch to the TNS or ON position.
|
B+
|
• Taillight bulb
• License plate light bulb
• Related wiring harness
|
|
Turn the light switch to the OFF position.
|
1.0 or less
|
|
3O
|
Back-up light bulb output
|
Back-up light bulb
|
MTX: Shift the shift lever to R position.
ATX: Shift the selector lever to R position.
|
B+
|
• Back-up light bulb
• Related wiring harness
|
|
Except above condition
|
1.0 or less
|
