FRONT FOG LIGHT RELAY REMOVAL/INSTALLATION

id092100665400

1. Disconnect the negative battery cable.

2. Slightly bend back the mudguard (LH).

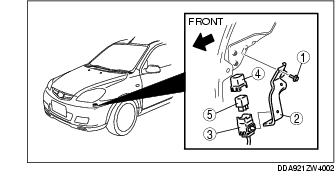

3. Remove in the order indicated in the table.

1
Bolt
2
Bracket
3
Connector
4
Cap
5
Front fog light relay

4. Install in the reverse order of removal.
