RELAY INSPECTION
id092100800300
Relay Type
Terminal type
Part name
Four-terminal

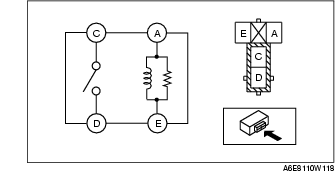

Type A
• Main relay
• Starter relay
• Fuel pump relay
• Front fog light relay
• Headlight LO relay
• Headlight HI relay
• Rear window defroster relay
• A/C relay
• Blower relay
• Cooling fan relay No.1
• Drive-by-wire relay

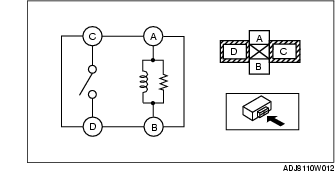

Type B
• Cooling fan relay No.2
Four-terminal
Type A

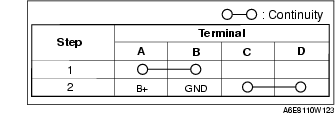

1. Verify that the continuity is as indicated in the table.
• If there is any malfunction, replace the ignition switch.
Type B
1. Verify that the continuity is as indicated in the table.
• If there is any malfunction, replace the ignition switch.
