INPUT/OUTPUT CHECK MODE OPERATION

id092200100900

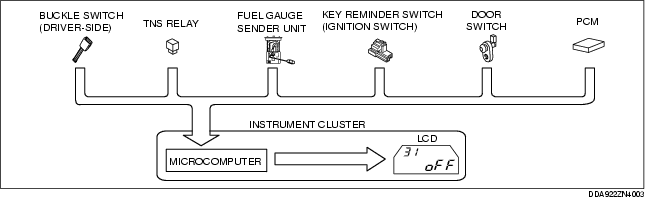

Input Circuit Check

• When the parts listed in the chart are operated and signal is output to the instrument cluster, the built-in microcomputer determines the operability of the input circuit based on that signal.


No.	Parts sending input signal
01	Buckle switch (driver-side)
04	Door switch
08	TNS relay
22	Fuel gauge sender unit
31	Key reminder switch
59	Fuel system signal • CAN system • Fuel gauge sender unit

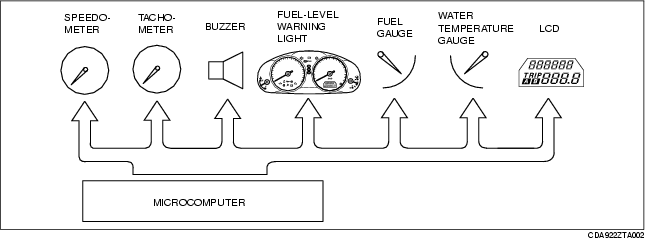

Individual Circuit Check

• By operating the parts listed in the chart, the built-in microcomputer determines the operability of the individual parts.


No.	Parts sending input signal
12	Speedometer
13	Tachometer
14	Buzzer
16	Fuel-level warning light
23	Fuel gauge
25	Water temperature gauge
26	LCD
