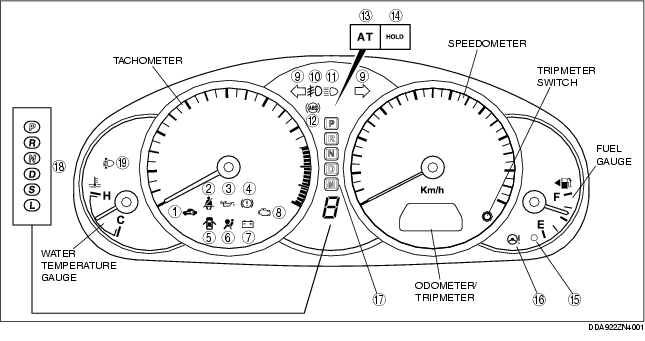

INSTRUMENT CLUSTER STRUCTURAL VIEW
id092200101200
X: Applied
No.
Warning and indicator lights
Input signal source
CAN system
Note
1
Security light
PCM
-
-
2
Seat belt warning light
Buckle switch
-
-
3
Oil pressure warning light
Oil pressure switch
-
-
4
Brake system warning light
• Parking brake switch
• Brake fluid level sensor
-
-
ABS HU/CM
X
Vehicles with ABS
5
Door ajar warning light
Door switch
-
-
6
Air bag system warning light
SAS unit
-
-
7
Generator warning light
PCM
X
-
8
MIL
PCM
X
-
9
Turn indicator light
Turn switch
-
-
10
Front fog indicator light
Headlight switch
-
-
11
High-beam indicator light
Headlight switch
-
-
12
ABS warning light
ABS HU/CM
X
Vehicles with ABS
13
AT warning light
PCM
X
Sport AT
14
HOLD indicator light
PCM
X
4AT
15
Fuel-level warning light
Fuel gauge sender unit
-
-
16
EPS warning light
EPS control module
X
-
17
Selector indicator light
PCM
X
Sport AT
18
4AT
