SEAT BELT WARNING ALARM CONSTRUCTION/OPERATION
id092200101800

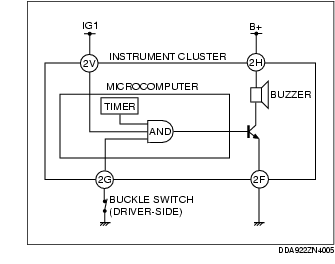

System Wiring Diagram
Operation
• The buzzer in the instrument cluster sounds for 93 s when all the following two conditions are met:
-
- The seat belt (driver-side) is unfastened (buckle switch is off).
-
- The vehicle speed is 20 km/h {12.4 mph} or more.
