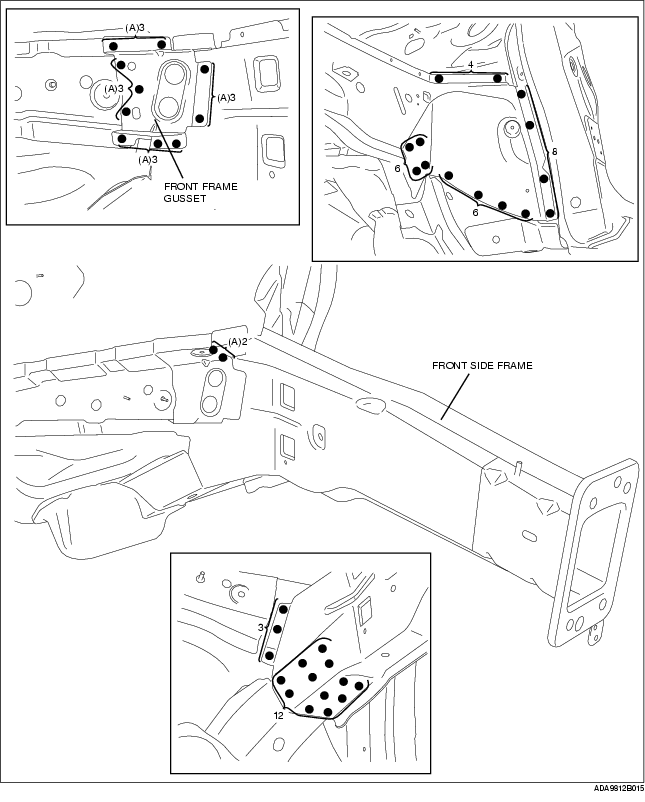

FRONT SIDE FRAME REMOVAL


id098008605900

1. Drill the 14 weld locations indicated by (A), and remove the front frame gusset.

2. Drill the remaining weld locations and remove the front side frame by pulling it.
