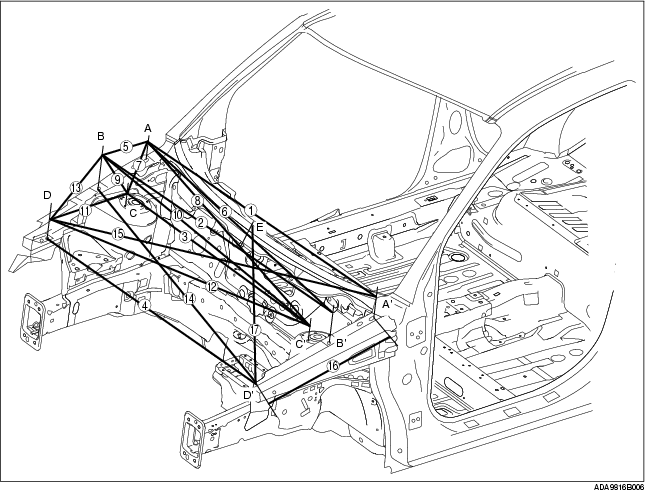

FRONT BODY STRAIGHT-LINE DIMENSIONS (2)

id098010740700

.

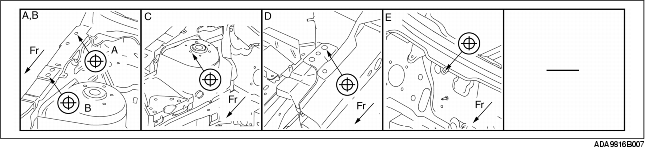

Measured location

Dimensions mm {in}

1
1,430 {56.30}
2
1,384 {54.49}
3
1,107 {43.58}
4
1,312 {51.56}
5
224 {8.82}
6
1,425 {56.10}
7
309 {12.17}
8
1,296 {51.02}
9
147 {5.79}
10
1,246 {49.06}
11
217 {8.54}
12
1,225 {48.23}
13
232 {9.13}
14
1,367 {53.82}
15
1,444 {56.85}
16
456 {17.95}
17
725 {28.54}
