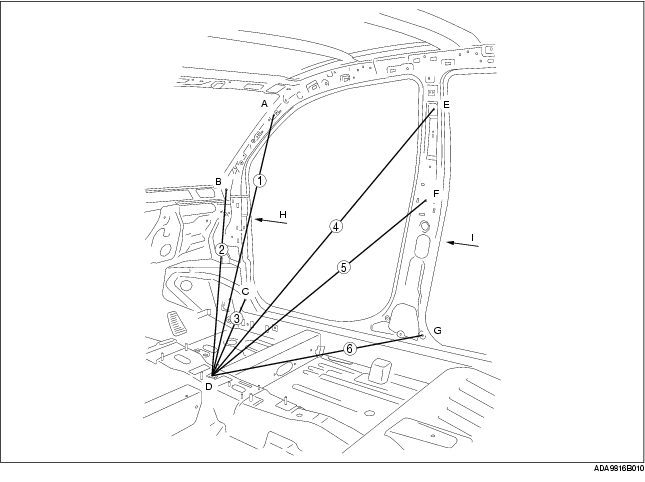

Measured location
|
Dimensions mm {in}
|
|---|---|
|
1
|
1,123 {44.21}
|
|
2
|
1,067 {42.01}
|
|
3
|
799 {31.46}
|
|
4
|
1,261 {49.65}
|
|
5
|
1,038 {40.87}
|
|
6
|
851 {33.50}
|
|
H-H'
|
1,398 {55.04}
|
|
I-I'
|
1,406 {55.35}
|
