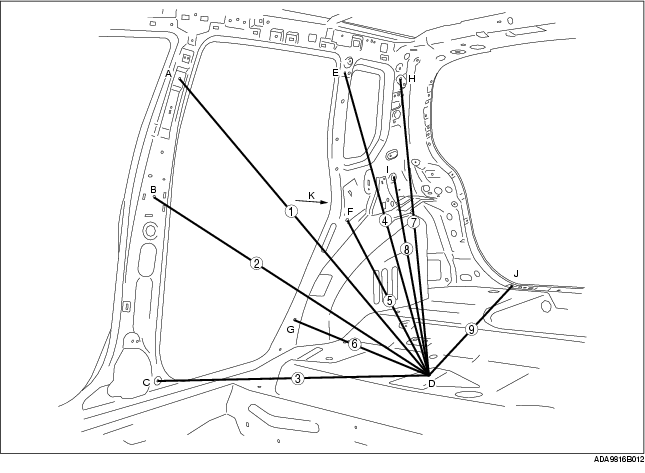

Measured location
|
Dimensions mm {in}
|
|
1
|
RH:1,102 {43.39}, LH:1,058 {41.65}
|
|
2
|
RH:949 {37.36}, LH:890 {35.04}
|
|
3
|
RH:834 {32.83}, LH:763 {30.04}
|
|
4
|
RH:1,140 {44.88}, LH:1,100 {43.31}
|
|
5
|
RH:949 {37.36}, LH:887 {34.92}
|
|
6
|
RH:755 {29.72}, LH:675 {26.57}
|
|
7
|
RH:1,254 {49.37}, LH:1,219 {47.99}
|
|
8
|
RH:1,183 {46.57}, LH:1,134 {44.65}
|
|
9
|
RH:1,161 {45.71}, LH:1,137 {44.76}
|
|
K-K'
|
1,425 {56.10}
|
