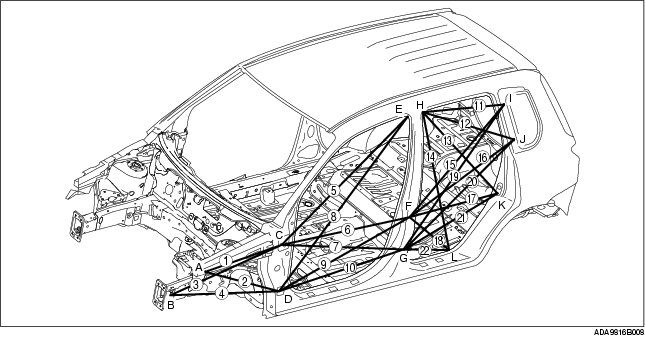

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS

id098010743600

.

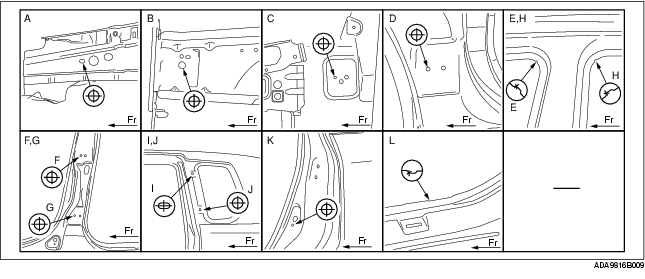

Measured location

Dimensions mm {in}

1
551 {21.69}
2
637 {25.08}
3
883 {34.76}
4
838 {32.99}
5
1,305 {51.38}
6
1,092 {42.99}
7
1,086 {42.76}
8
1,496 {58.90}
9
1,157 {45.55}
10
1,042 {41.02}
11
670 {26.38}
12
779 {30.67}
13
920 {36.22}
14
1,062 {41.81}
15
969 {38.15}
16
920 {36.22}
17
796 {31.34}
18
614 {24.17}
19
1,193 {46.97}
20
1,092 {42.99}
21
847 {33.35}
22
436 {17.17}
