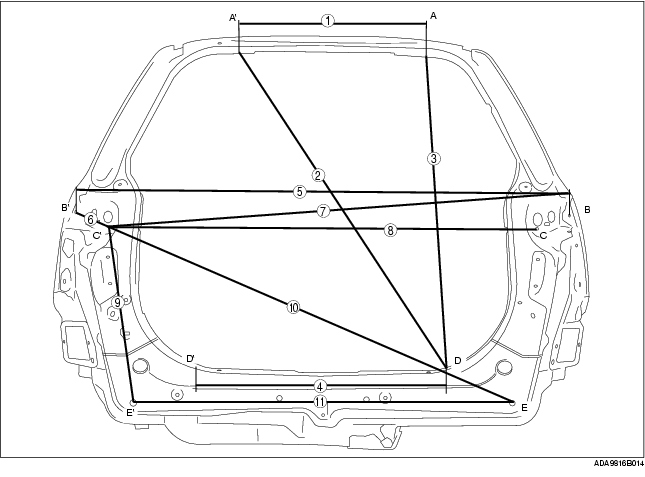

REAR BODY STRAIGHT-LINE DIMENSIONS
id098010748200
.
|

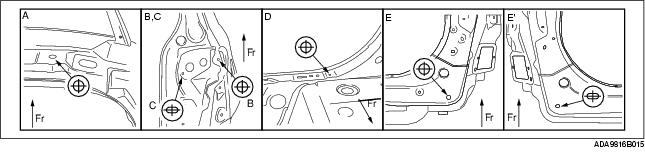

Measured location
|
Dimensions mm {in}
|
|
1
|
650 {25.59}
|
|
2
|
1,214 {47.80}
|
|
3
|
1,024 {40.31}
|
|
4
|
656 {25.83}
|
|
5
|
1,421 {55.94}
|
|
6
|
116 {4.57}
|
|
7
|
1,320 {51.97}
|
|
8
|
1,217 {47.91}
|
|
9
|
505 {19.88}
|
|
10
|
1,218 {47.95}
|
|
11
|
1,010 {39.76}
|
