CONTROL VALVE BODY OUTLINE
id051700110100
• The control valve body is composed of three bodies: the upper control valve body, premain control valve body, and the solenoid control valve body.
• Because the clutch engagement pressure is controlled electronically, the hydraulic circuits are simplified, the valve types are reduced, and the control valve body is miniaturized.
• The nonwoven fabric oil strainer is installed in the control valve body to prevent contamination.
|

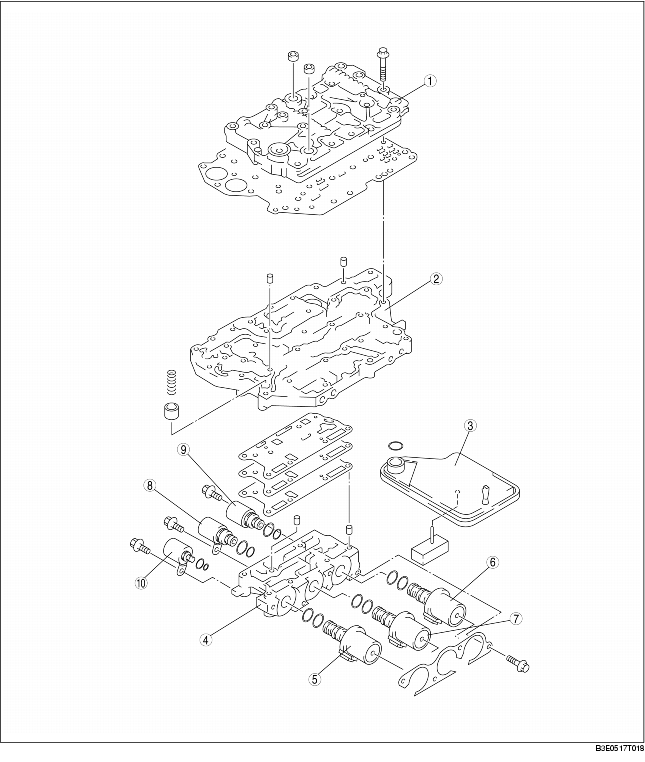

1
|
Upper control valve body
|
|
2
|
Main control valve body
|
|
3
|
Oil strainer
|
|
4
|
Solenoid valve body
|
|
5
|
Shift solenoid A
|
|
6
|
Shift solenoid B
|
|
7
|
Shift solenoid C
|
|
8
|
Shift solenoid D
|
|
9
|
Shift solenoid E
|
|
10
|
Pressure control solenoid
|
