FOREWORD [ZJ, ZY]

id0102c0800300

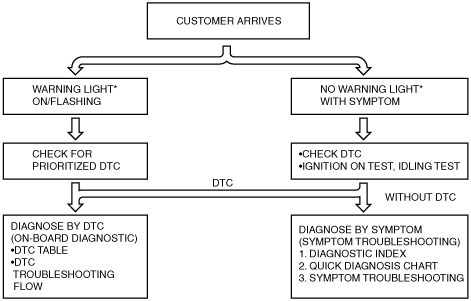

• When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart.

― If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE [ZJ, ZY].)

― If a DTC does not exist and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC CHART [ZJ, ZY].)

acxuuw00002404

*: Malfunction Indicator Lamp (MIL), Generator Warning Light, Security Light
