CYLINDER HEAD GASKET REPLACEMENT [MZ-CD 1.6 (Y6)]

id0110b2800700

Warning

•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

•  Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”. (See BEFORE SERVICE PRECAUTION [MZ-CD 1.6 (Y6)].)

1.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZ-CD 1.6 (Y6)].)

2.  Remove the following parts:

(1)  Air hose, combined MAF sensor and IAT, sensor and the air cleaner component (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

(2)  Fuel pump

(3)  Lower cylinder head cover, camshaft and timing chain component (See TIMING CHAIN REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

(4)  Catalytic converter (See EXHAUST SYSTEM INSPECTION [MZ-CD 1.6 (Y6)].)

(5)  Exhaust manifold and turbocharger component (See EXHAUST SYSTEM INSPECTION [MZ-CD 1.6 (Y6)].)

(6)  Generator (See GENERATOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

3.  Disconnect the coolant reserve tank hose, upper radiator hose, heater hose and ECT sensor electrical connector. (See THERMOSTAT REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

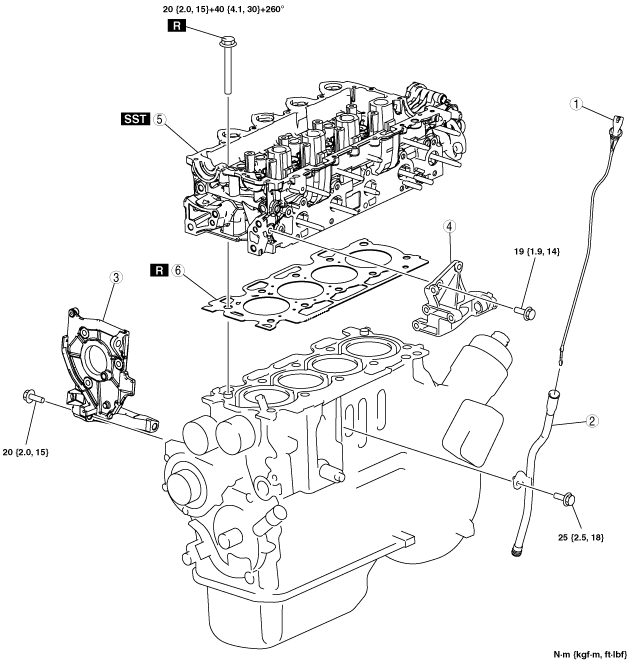

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

am2zzw00003922

1	Oil level gauge
2	Oil level gauge pipe
3	Fuel pump bracket
4	Generator bracket
5	Cylinder head (See Cylinder Head Removal Note.) (See Cylinder Head Installation Note.)
6	Cylinder head gasket (See Cylinder Head Gasket Installation Note.)

Cylinder Head Removal Note

1.  Loosen the cylinder head bolts in 2—3 passes in the order shown in the figure.

am3zzw00001380

Caution

•  Do not remove the cylinder head bolts until the cylinder head has cooled to below 30°C.

Cylinder Head Gasket Installation Note

Caution

•  The thickness of the new cylinder head gasket must be the same as that of the old one (hole/tooth marked).

•  Make sure that the two locating dowels are installed.

1.  Install a new cylinder head gasket.

am3zzw00001381

Cylinder Head Installation Note

1.  Tighten the new cylinder head installation bolts using the SST (49 D032 316) in three steps in the order shown in the figure.

am3zzw00001382
