DRIVE BELT INSPECTION [MZ-CD 1.6 (Y6)]

id0110b2801500

Note

•  Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.

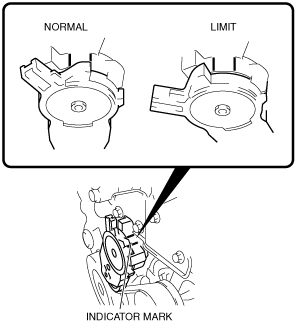

1.  Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

am2zzw00004000

•  If it exceeds the limit, replace the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
