CYLINDER HEAD COVER CONSTRUCTION [ZJ, ZY]


id0110b7100200

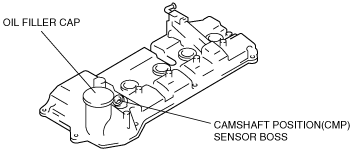

•  The cylinder head cover is made of integrated aluminum alloy, which is lightweight and sound absorbent.
•  The oil filler cap is a screw-in type. The boss for installing the camshaft position (CMP) sensor is provided at the front of the cylinder head cover.
am2zzn00000002
