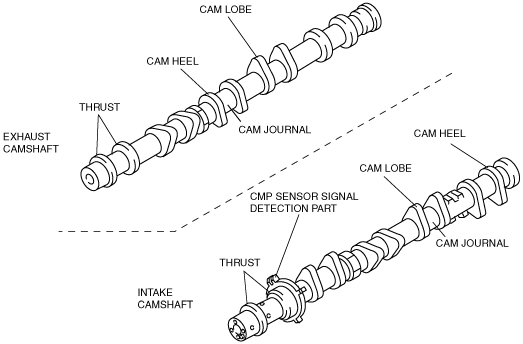

CAMSHAFT CONSTRUCTION [ZJ, ZY]
id0110b7101300
• A cast iron, highly rigid 5-axis hole camshaft has been adopted to insure higher reliability.
• Camshaft endplay is regulated at the rear of the No.1 journal.
• Lubricating oil is supplied from inside of the camshaft to each journal.
• Additionally the cam lobe part is chill cast to improve wear resistance, and the width of the cam hill part is shortened to reduce weight.
• The enhanced smooth-finishing precision on the cam lobe contact surfaces enables reduced friction and improved quietness.
• There is an oil line supplying oil to the variable valve timing actuator located on the intake port side camshaft (front of camshaft).
Camshaft specification
|
ITEM
|
ZJ
|
ZY
|
|
IN
|
EX
|
IN
|
EX
|
|
Lift
|
(mm {in})
|
8.0 {0.31}
|
6.8 {0.27}
|
8.0 {0.31}
|
7.2 {0.28}
|
|
Valve timing
|
Open
|
BTDC -9°—31°
|
BBDC 31°
|
BTDC -9°—31°
|
BBDC 40°
|
|
Close
|
ABDC 59°—19°
|
ATDC -1°
|
ABDC 59°—19°
|
ATDC -1°
|

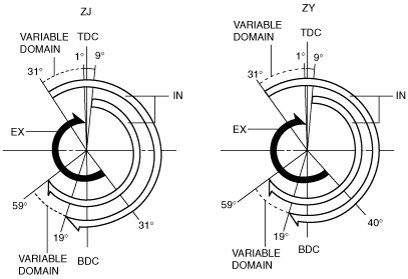

Valve timing
• The intake side camshaft has a detection unit on the camshaft position (CMP) sensor integrated with the camshaft.
