DRIVE BELT CONSTRUCTION [ZJ, ZY]


id0110b7102500

•  A serpentine-type drive belt with a V-ribbed belt to drive the supplemental units has been adopted. This shortens the engine length and improves serviceability.
•  A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.

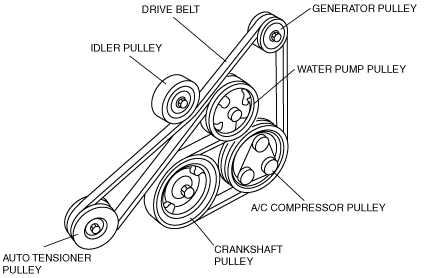

With A/C

am2zzn00000511

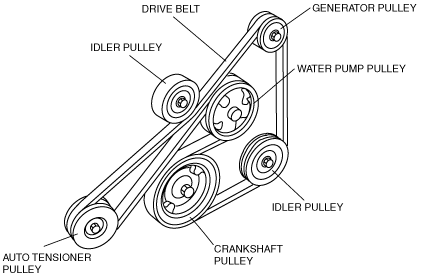

Without A/C

am2zzn00000512
