ENGINE MOUNT CONSTRUCTION [ZJ, ZY]
id0110b7114000

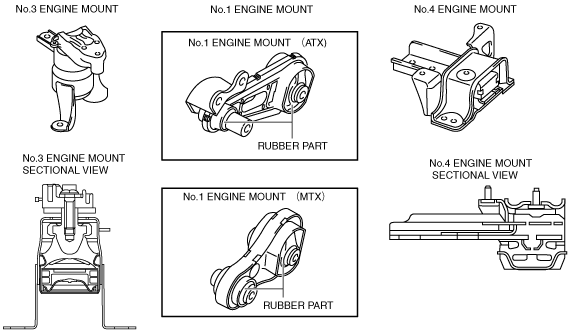

• The exterior frame of the No.1 engine mount rubber is made of aluminum alloy, and is composed of a torque rod-shaped structure including an anti-vibration function, which regulates the conventional rubber function and the rotation from the powertrain.
• The No.3 engine mount rubber is oil-filled for noise reduction and vibration isolation.
