VARIABLE VALVE TIMING MECHANISM CONSTRUCTION [ZJ, ZY]


id0110b7120700

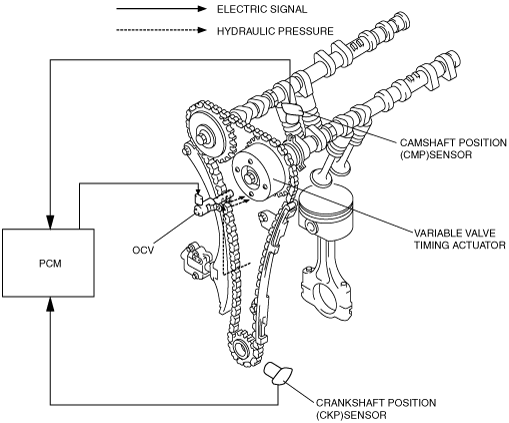

•  The variable valve timing mechanism consists of a variable valve timing actuator, oil control valve (OCV), CKP sensor, CMP sensor, and the PCM.
am2zzn00000022

Hydraulic Pressure Flow Diagram

am2zzn00000023

Component and function

Variable valve timing actuator
•  The phase difference between the variable timing actuator and camshaft on the intake side changes continually based on the hydraulic pressure controlled by the oil control valve (OCV).
Oil control valve (OCV)
•  Operated by current (duty signal) from the PCM. Controls the hydraulic oil passages to the variable valve timing actuator.
CKP sensor
•  Inputs engine revolution signal to the PCM.
CMP sensor
•  Inputs cylinder identification signal to the PCM.
PCM
•  Controls the oil control valve (OCV) so that optimum valve timing is obtained according to engine operation conditions.
