WATER PUMP CONSTRUCTION/OPERATION [ZJ, ZY]


id011219100400


Construction

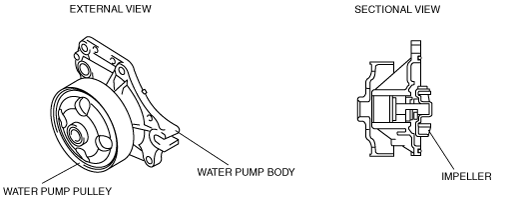

•  The water pump pulley, made of steel, and the water pump body, made of aluminum alloy, are integrated, and the impeller is built into the cylinder block for size reduction
am2zzn00000631

Operation

•  The water pump is driven by the drive belt.
