INTAKE MANIFOLD CONSTRUCTION [ZJ, ZY]


id0113a8100800

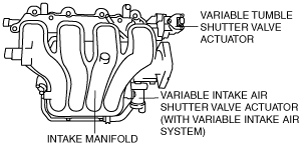

•  Mainly consists of the variable intake air shutter valve actuator (With variable intake air system) and variable tumble shutter valve actuator.
•  The intake manifold is made of hard plastic for weight reduction.
•  By lengthening the intake pipe, charging efficiency at low to middle engine speeds and low engine torque is enhanced resulting in higher torque.
