AIR CLEANER CONSTRUCTION [ZJ, ZY]
id0113a8101400

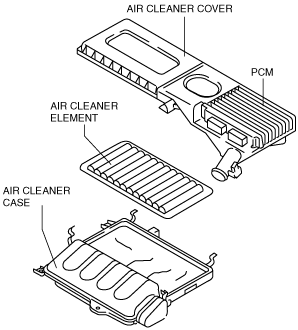

• The air cleaner is mainly composed of the air cleaner case, air cleaner cover and air cleaner element.
• The air cleaner construction suppresses intake air resistance for increased torque at all engine speeds.
Air Cleaner Element
• Non-woven fabric (dry type) has been adopted.
Air Cleaner Cover
• The PCM and attached PCM case have been integrated with the cover. The PCM is forced cooled by intake air due to this integration. (See
PCM CONSTRUCTION/OPERATION [ZJ, ZY].)
