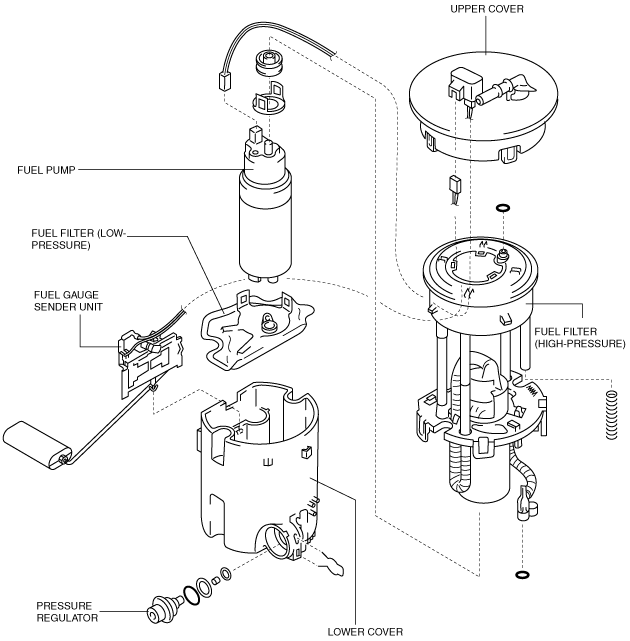

•  Mainly consists of a fuel filter (high-pressure), pressure regulator, fuel pump, fuel reserve cup, and fuel filter (low-pressure).

•  A pressure regulator is built-in due to the adoption of a returnless fuel system.

•  A hard-plastic fuel pump unit, with an integrated fuel filter (high-pressure) and fuel pump, has been adopted to simplify the fuel line.

•  The fuel pump unit can be disassembled.

•  Built into the fuel pump unit due to adoption of a returnless fuel system.

•  Mainly consists of a spring, release valve and diaphragm.

•  Pressurizes fuel discharged by the fuel pump to approx. 390 kPa {3.97 kgf/cm², 56.5 psi} using the spring, diaphragm and release valve, and then pumps it to the fuel distributor.

•  If fuel pressure exceeds approx. 390 kPa {3.97 kgf/cm², 56.5 psi}, the release valve opens to discharge unnecessary fuel pressure.
