STARTER DISASSEMBLY/ASSEMBLY [ZJ, ZY]

id011915800400

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

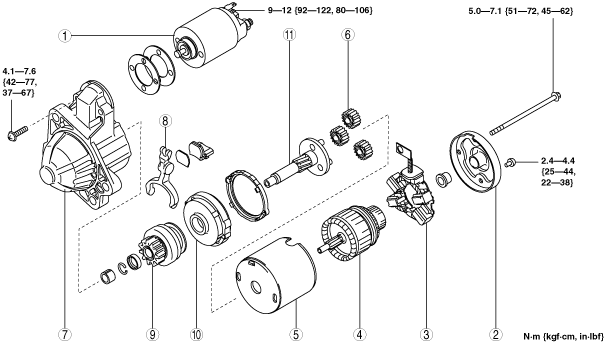

am2zzw00001750

1	Magnetic switch
2	Rear housing
3	Brush and brush holder
4	Armature
5	Yoke
6	Planetary gear
7	Front cover
8	Lever
9	Drive pinion
10	Internal gear
11	Gear shaft
