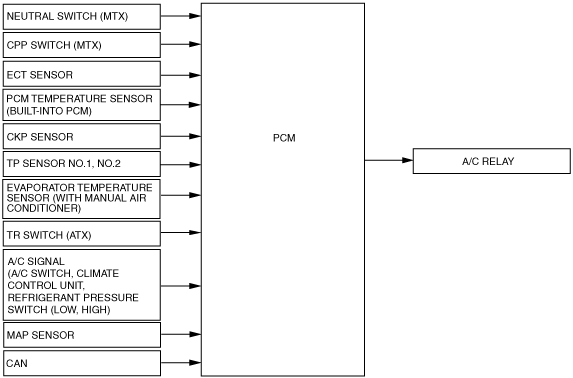

A/C CUT-OFF CONTROL BLOCK DIAGRAM [ZJ, ZY]


id0140c4103600

•  The PCM determines the engine operation conditions based on signals from the various input parts and sends an on/off control signal to the A/C relay.
am2zzn00000679
