CAMSHAFT POSITION (CMP) SENSOR CONSTRUCTION/OPERATION [ZJ, ZY]
id0140c4105000

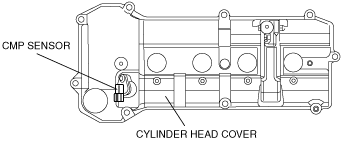

• Installed to the cylinder head cover tilted at a 30°angle.
am2zzn00000322

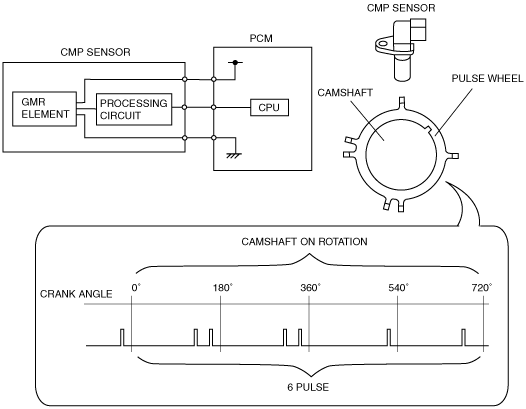

• A GMR element-type sensor has been adopted.
• The resistance value, which fluctuates according to the rotation angle of the camshaft on the intake side, is output as voltage that has been changed to a rectangular wave form by the processing circuit.
