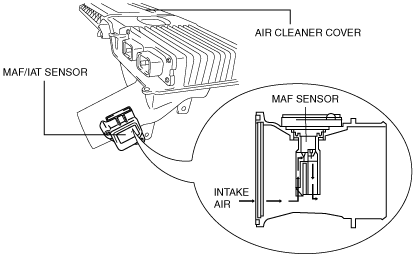

•  Installed to the air cleaner cover.

am2zzn00000298

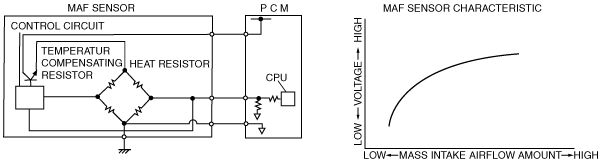

•  A hot wire type sensor has been adopted.

•  The sensor, which contains a heat resistor and temperature compensating resistor positioned in the air intake, maintains the temperature of the heat resistor to a specified temperature higher than the intake air temperature.

•  The mass intake airflow amount is output as voltage based on the intake airflow amount and intake air density correction amount.

am2zzn00000299
