THROTTLE POSITION (TP) SENSOR CONSTRUCTION/OPERATION [ZJ, ZY]
id0140c4174000

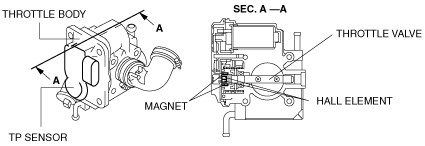

• Built into the throttle body.
• A hall element-type sensor has been adopted.
• Voltage is output according to the throttle valve angle.
• The throttle position sensor has a main sensor and sub-sensor, and outputs voltage using a 2-circuit system. The PCM can always obtain correct values even if a malfunction occurs in one of the sensors.
