•  Built into the accelerator pedal mechanism.

am2zzn00000345

•  A hall element has been adopted.

•  Voltage is output according to the amount the accelerator pedal is depressed.

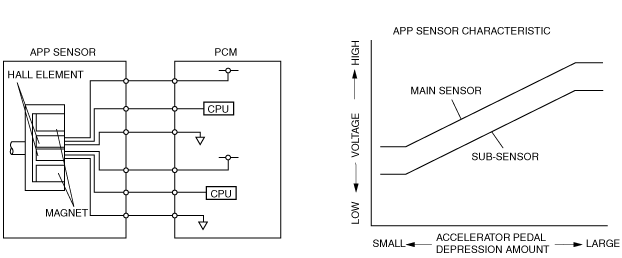

•  The accelerator pedal position sensor contains a main sensor and sub-sensor which output voltage using a 2-circuit system. The PCM compares the output value from the 2-circuit system to perform precise malfunction detection

am2zzn00000293
