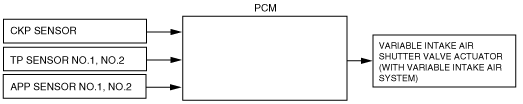

VARIABLE INTAKE AIR CONTROL BLOCK DIAGRAM [ZJ, ZY]
id0140c4176100
With Variable Intake Air System Only
• The PCM determines the engine operation conditions based on input signals and sends an operation signal to the variable intake air shutter valve actuator.
