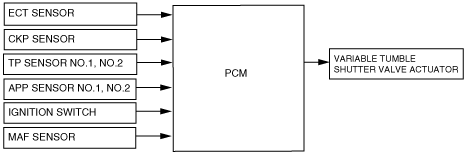

VARIABLE TUMBLE CONTROL BLOCK DIAGRAM [ZJ, ZY]


id0140c4176400

•  The PCM determines the engine operation conditions based on input signals and sends an operation signal to the variable tumble shutter valve actuator.
am2zzn00000682
