NEUTRAL SWITCH CONSTRUCTION/OPERATION [ZJ, ZY]

id0140c4176900

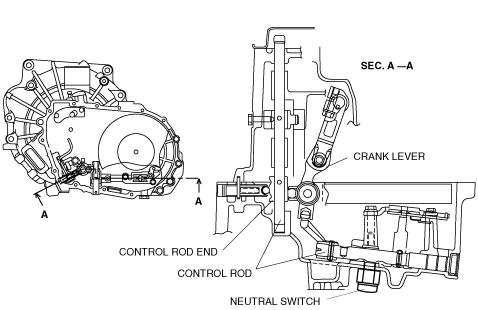

• Installed to the clutch housing.

am2zzn00000276

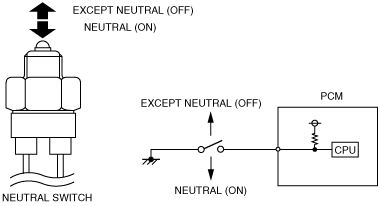

• An ON/OFF type switch has been adopted.

• The contact point is on when in neutral to output voltage and off when not in neutral.

am2zzn00000277
