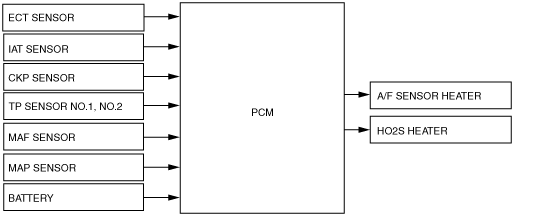

AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) HEATER CONTROL BLOCK DIAGRAM [ZJ, ZY]

id0140c4782100

• The PCM determines the engine operation conditions based on input signals and sends an operation signal to the A/F sensor or HO2S.
