REAR SHOCK ABSORBER REMOVAL/INSTALLATION

id021400801300

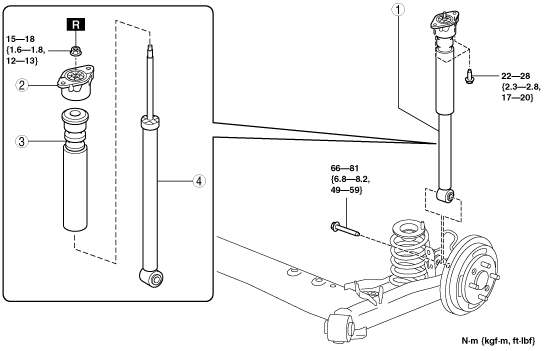

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

am2zzw00001578

1	Shock absorber component (See Shock Absorber Component Removal Note.) (See Shock Absorber Component Installation Note.)
2	Mounting rubber
3	Bound stopper component
4	Rear shock absorber

Shock Absorber Component Removal Note

1.  Support the lower side of the shock absorber using a jack and remove the shock absorber component.

am2zzw00001579

Shock Absorber Component Installation Note

1.  Support the lower side of the shock absorber using a jack and install the shock absorber component.

am2zzw00001579
