JOINT SHAFT DISASSEMBLY [ZJ, ZY]
id0313008010a8

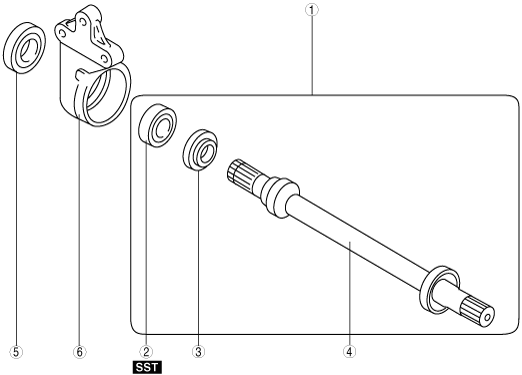

1. Disassemble in the order indicated in the table.
adejjw00004879
|
|
1
|
Joint shaft component
|
|
2
|
Bearing
(See Bearing Disassembly Note.)
|
|
3
|
Dust seal (LH)
|
|
4
|
Joint shaft
|
|
5
|
Dust seal (RH)
|
|
6
|
Bracket
|
Joint Shaft Component Disassembly Note
1. Secure the bracket to the vise at the position shown in the figure and remove the joint shaft component using the plastic hammer.
adejjw00004880
|
Bearing Disassembly Note
1. Remove the bearing from the joint shaft using the SST.
