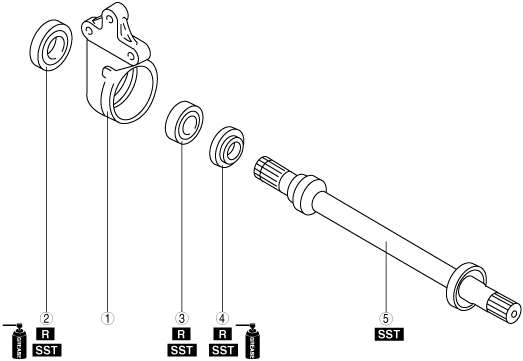

JOINT SHAFT ASSEMBLY [ZJ, ZY]
id0313008011a8
1. Assemble in the reverse order of disassembly.
adejjw00003717
|
|
1
|
Bracket
|
|
2
|
Dust seal (RH)
(See Dust Seal (RH) Assembly Note.)
|
|
3
|
Bearing
(See Dust Seal (LH) Assembly Note.)
|
|
4
|
Dust seal (LH)
(See Dust Seal (LH) Assembly Note.)
|
|
5
|
Joint shaft
(See Joint Shaft Assembly Note.)
|
Dust Seal (RH) Assembly Note
1. Apply grease to a new dust seal lip.
2. Install the dust seal (RH) using the SSTs.
am2zzw00001457
|
Bearing Assembly Note
1. Install a new bearing using the SSTs.
am2zzw00001458
|
Dust Seal (LH) Assembly Note
1. Apply grease to a new dust seal lip.
2. Install a new dust seal (LH) using the SSTs and steel plate.
am2zzw00001459
|
Joint Shaft Assembly Note
1. Press the joint shaft in using the SST and a press.
am2zzw00001460
|
